Mirka® AIOS 353CV

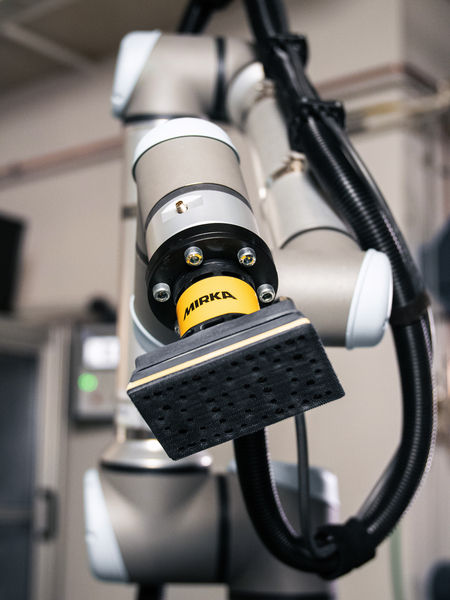

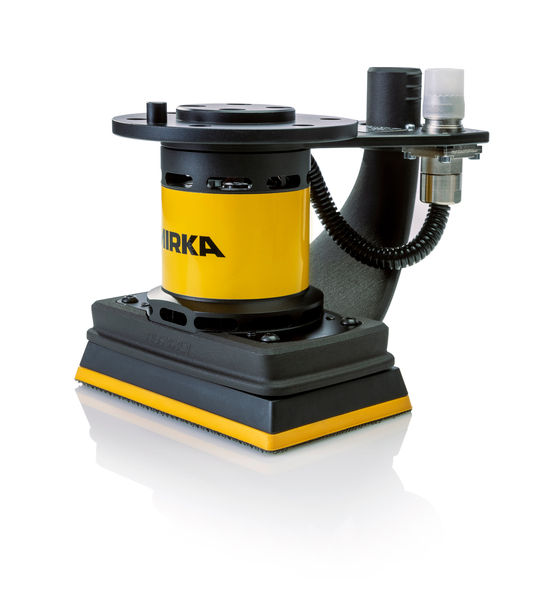

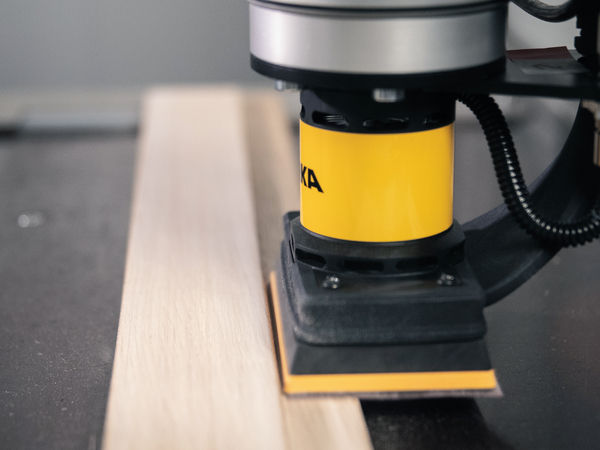

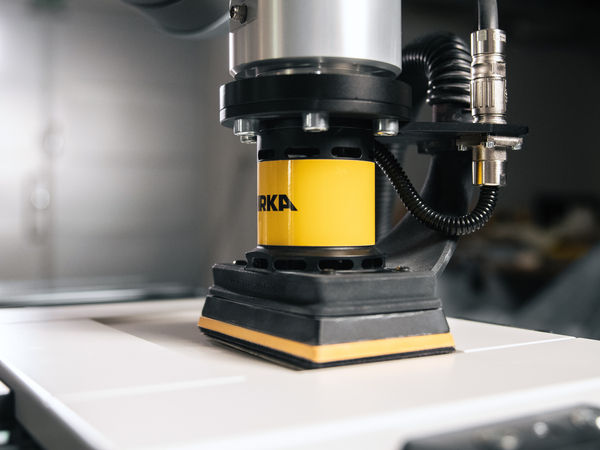

The Mirka® AIOS (Automated Industrial Orbital Sander) is an advanced electric sanding head for robot usage. Rectangular sanding pad engineered especially for the wood sector, for sanding corners as well as surfaces. In applications such as manufacturing furniture, doors and windows, the AIOS 353CV can be used to drive up productivity and finishing quality with robotic precision. Mirka® AIOS is an electric and smart sander, built inside a sturdy yet light aluminium housing, featuring an ISO 9409-1 compatible flange for mechanical robot coupling. It can be adapted to fit all mechanical couplings, offering maximum flexibility. The long-life, brushless motor is extra safe for wet sanding, and it runs on constant and configurable RPM. This model has a 81mm x 133mm sized pad and is to be connected to a dust extraction system.

Use for

Sanding

Technical details

Dust System
Central vacuum ready
IP Classification
IP66
Max Speed (rpm)
10000 rpm
Min Speed (rpm)
5000 rpm
Orbit
3 mm
Orbit Type
Orbital
Pad Included
8292353011
Pad Length
133 mm
Pad Width
81 mm
Power Input (W)
350 W
Weight
1.2 kg

Downloads

PDF

Mirka® AIOS,AIROS & AIROP Leaflet

VIDEO

Mirka® AIOS 353CV Video

PDF

Tool Manual - Mirka® AIOS, AIROS & AIROP

PDF

Manual - Mirka® Automation Electrical
